Glow electricity meters

Single phase & Three phase electricity meters (with/without CT)

Simple to install, quickly retrieve electricity data from the meter via our Glow ecosystem or your own application. Our complementary Glow Connect app enables you to configure the meter at point of installation.

Connectivity

Setup is available locally through Glow Connect via Bluetooth or remotely when connected to Wi-Fi or mobile network.

• WiFi
• Bluetooth
• NB-IoT (optional)
• 2G (optional)

Features

• Available as direct current and current transformer
• LCD Display for manual checks
• Time synchronization
• Battery-powered internal clock
• Custom Glow Communications board
• Easy installation with local or remote commissioning support
• Remote view via secure internet connection
• Automatic firmware updates with failsafe mode
• Bundled NB-IoT or 2G with global connectivity via eSIM
• Alerts for disconnection and communication errors
• Local and remote logging of events
• Tamperproofing with sealable screws

Applications

Programmable and customisable meter
Real-time electricity monitoring
Integration with a range of submetering products into one cohesive solution
Electricity billing for large scale properties in both residential and non-domestic settings

Processing and memory

32-bit micro-controller and 4MB flash memory to capture granular data
Espressif 160MHz Dual core processing unit
Software embedded with full traceability of source code, increasing security and performance

Glow285

Single phase meter

Perfect for residential applications with direct connection and compact design for easy installation.

• TYPE: DDSD285
• 1Phase 2Wire
• 230V 5(100)A 50Hz
• MID Compliant
• EN 50470-3 Cl.B certified
• EN 62053-23 Cl.2 compliant

Hildebrand Single Phase Electricity Meter

Glow545

Three phase meter

Designed for commercial and industrial applications with higher capacity monitoring and advanced load balancing.

• TYPE: DTSD545
• 3Phase 4Wire
• 3×230/400V 10(100)A 50Hz
• MID Compliant
• EN 50470-3 Cl.B certified
• EN 62053-23 Cl.2 compliant

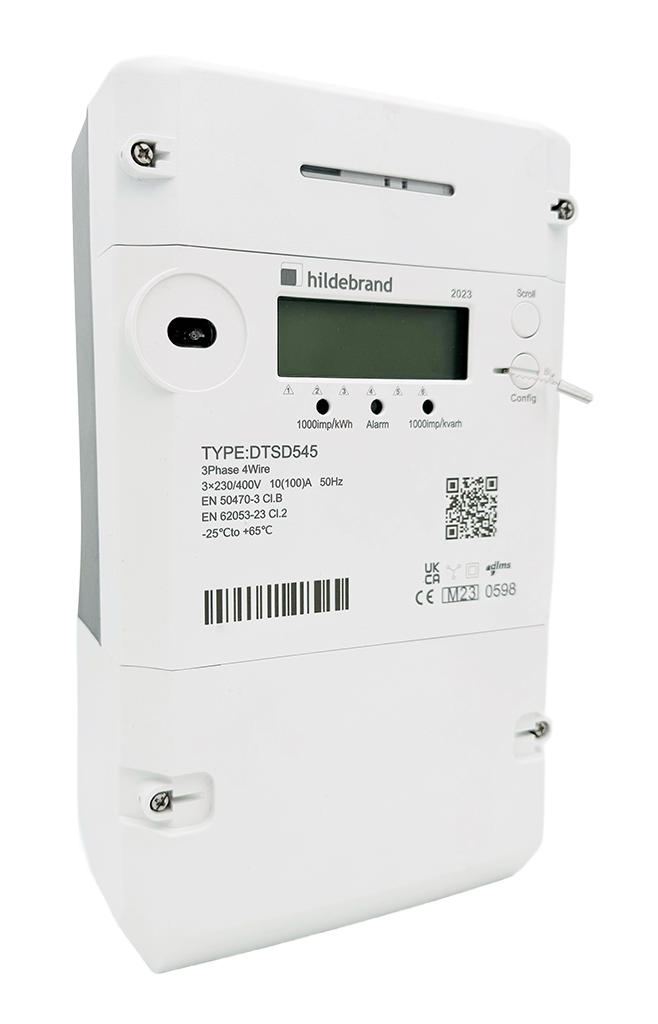

Hildebrand Three Phase Electricity Meter
